SFP Small Form Factor Pluggable Fiber Optic Module Modules SFP Gigabit Interface Modules
Signamax Small Form-factor Pluggable (SFP) fiber modules come in an array of options supporting Gigabit Ethernet transmission over either multimode or singlemode fiber cable at distances up to 80 kilometers.  They adhere to the IEEE 802.3z standards for Gigabit Ethernet fiber connectivity, and are cost-effective methods of providing changeable Gigabit Ethernet fiber optic interfaces to switches and media converters equipped with a standard SFP slot.
WEB PRICES LISTED BELOW.


midsouth-wire-and-cable-logo Pasted Graphic

APPLICATIONS
·    Router / Server interface
·    Distributed multi-processing
·    Switch to switch interface
·    High speed I/O for file server

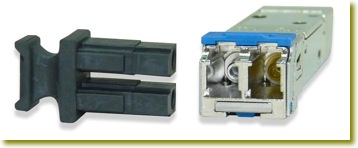

Front View of 065-79LXMG SFP Small Form Factor Pluggable Fiber Module Modules Fibre Optic Media Converter SFP Small Form-Factor Front View of 065-79SXMG Pluggable Fiber Optic Module Modules

SFP Small Form-Factor Pluggable Fiber Optic Module Modules Front View of 065-79EZXMG SFP Gigabit Interface Modules. Signamax Small Form-factor Pluggable (SFP) fiber modules come in an array of options supporting Gigabit Ethernet transmission over either multimode or singlemode fiber cable at distances up to 80 kilometers. They adhere to the IEEE 802.3z standards for Gigabit Ethernet fiber connectivity, and are cost-effective methods of providing changeable Gigabit Ethernet fiber optic interfaces to switches and media converters equipped with a standard SFP slot.

WEB PRICING

#065-79SXMG
1000BaseSX SFP Module – MM/LC, 220m Span on 62.5µm Fiber / 550m Span on 50µm Fiber

WEB PRICE EACH: $240.00

#065-79SXEDMG
1000BaseSX SFP Module 1310 nm – MM/LC, 2 km

Web Price Each: $369.00

065-79LXMG
1000BaseLX SFP Module 1310 nm – SM/LC, 10 km

Web Price Each: $339.00

065-79LXEDMG
1000BaseLX SFP Module 1310 nm – SM/LC, 40 km

Web Price Each: $889.00

065-79XDMG
1000BaseXD SFP Module 1550 nm – SM/LC, 40 km

Web Price Each: $979.00

065-79ZXMG
1000BaseZX SFP Module 1550 nm – SM/LC, 80 km

Web Price Each: $1,199.00

065-79EZXMG
1000BaseEZX SFP Module 1550 nm – SM/LC, 110 km

Web Price Each: $1,280.00

KEY FEATURES
·    Compliant with SFP MultiSource Agreement. Compliant with IEEE802.3Z
·    SCA-2 Host connector
·    Duplex LC connector
·    VCSEL, FP Laser, and DFB Laser models available supporting 1000BaseSX, 1000BaseLX,
   1000BaseXD, and 1000BaseZX standards
·    3.3V power supply
·    Five-year warranty
** Maximum distances attainable on multimode Gigabit Ethernet fiber circuits are primarily dependent upon multimode distortion, also known as modal dispersion.  Larger aperture fiber optic cable allows more modes to be generated at the launch point; these modes cause the pulse width to spread across a Gigabit Ethernet bit time interval to a point where accurate determination of data (i.e., ones and zeroes) is not possible.  These are physical properties that are not specific to this product.  These properties also apply to competing products operating in the same frequency spectrum over multimode fiber cable having the same modal bandwidth.
*** Maximum distances attainable on singlemode fiber circuits are dependent upon a circuit’s conditions; i.e., the number of splices and patch panels and the number of bends in the circuit path. For comparison with competing products, please use the Link Power Budget for meaningful comparisons.

SFP Gigabit Interface Modules

Prices are subject to change without notice.  Inventory is subject to prior sale.  Product design, specifications & construction are subject to change without notice. Pictures are for general representational purposes and may not represent actual product.
Not Responsible for errors in print, verify all data with us or manufacturer.  Terms & Conditions of sale apply, for a copy contact us.
Products may be discontinued without notice.  Pricing Does Not Include Freight Costs.
All trademarks remain the property of their respective holders, and are used only to directly describe the products being provided.

Signamax Small Form-factor Pluggable (SFP) fiber modules come in an array of options supporting Gigabit Ethernet transmission over either multimode or singlemode fiber cable at distances up to 80 kilometers.  They adhere to the IEEE 802.3z standards for Gigabit Ethernet fiber connectivity, and are cost-effective methods of providing changeable Gigabit Ethernet fiber optic interfaces to switches and media converters equipped with a standard SFP slot.
